RF Analyzer 2.0 User Manual

Welcome to the RF Analyzer 2.0 user manual. This guide will help you to install, configure, and effectively use the app for spectrum analysis and signal demodulation.

Quick Start Tutorial (YouTube)

Features

• Real-time FFT & waterfall spectrum visualization
• Support for HackRF, RTL-SDR, Airspy, HydraSDR and IQ file playback

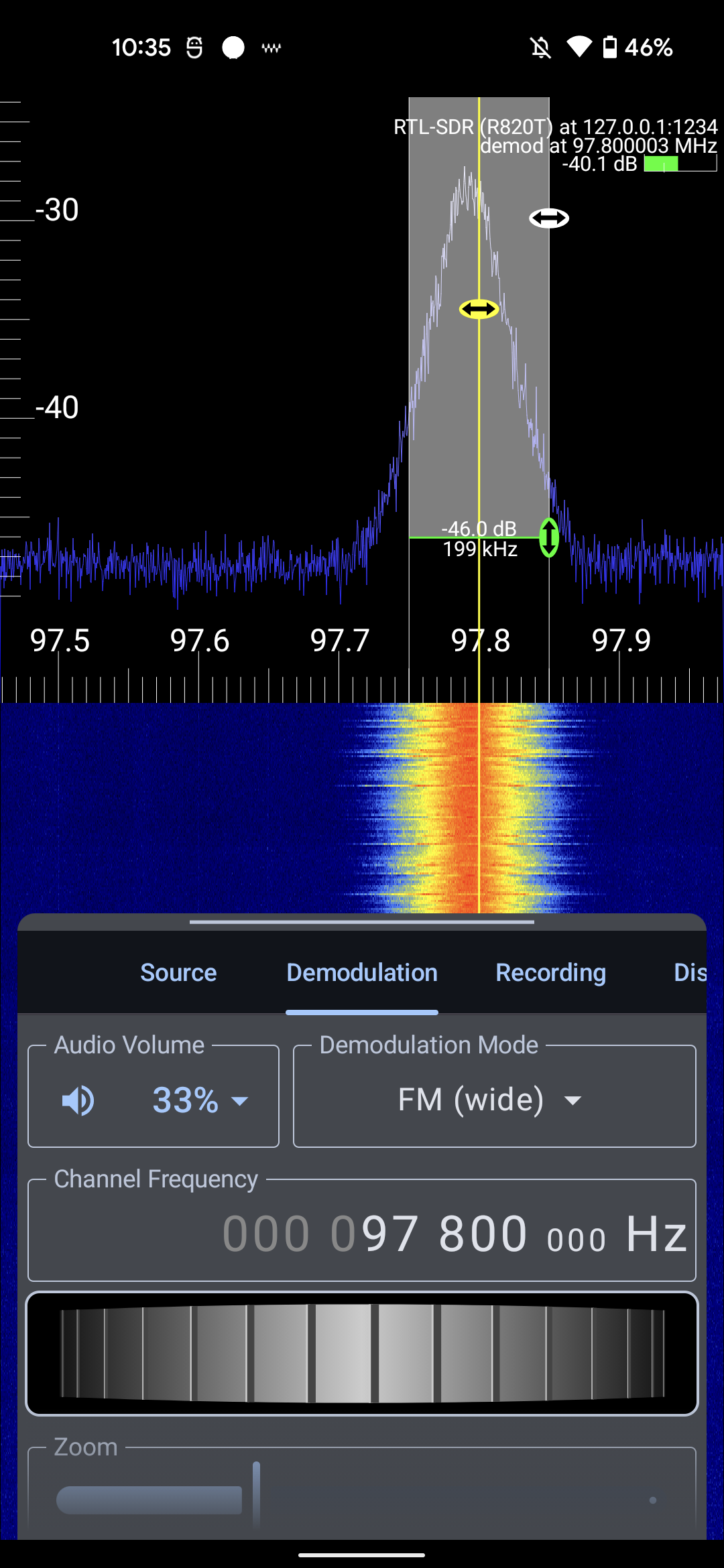

• Analog signal demodulation (CW, AM, nFM, wFM, LSB, USB)

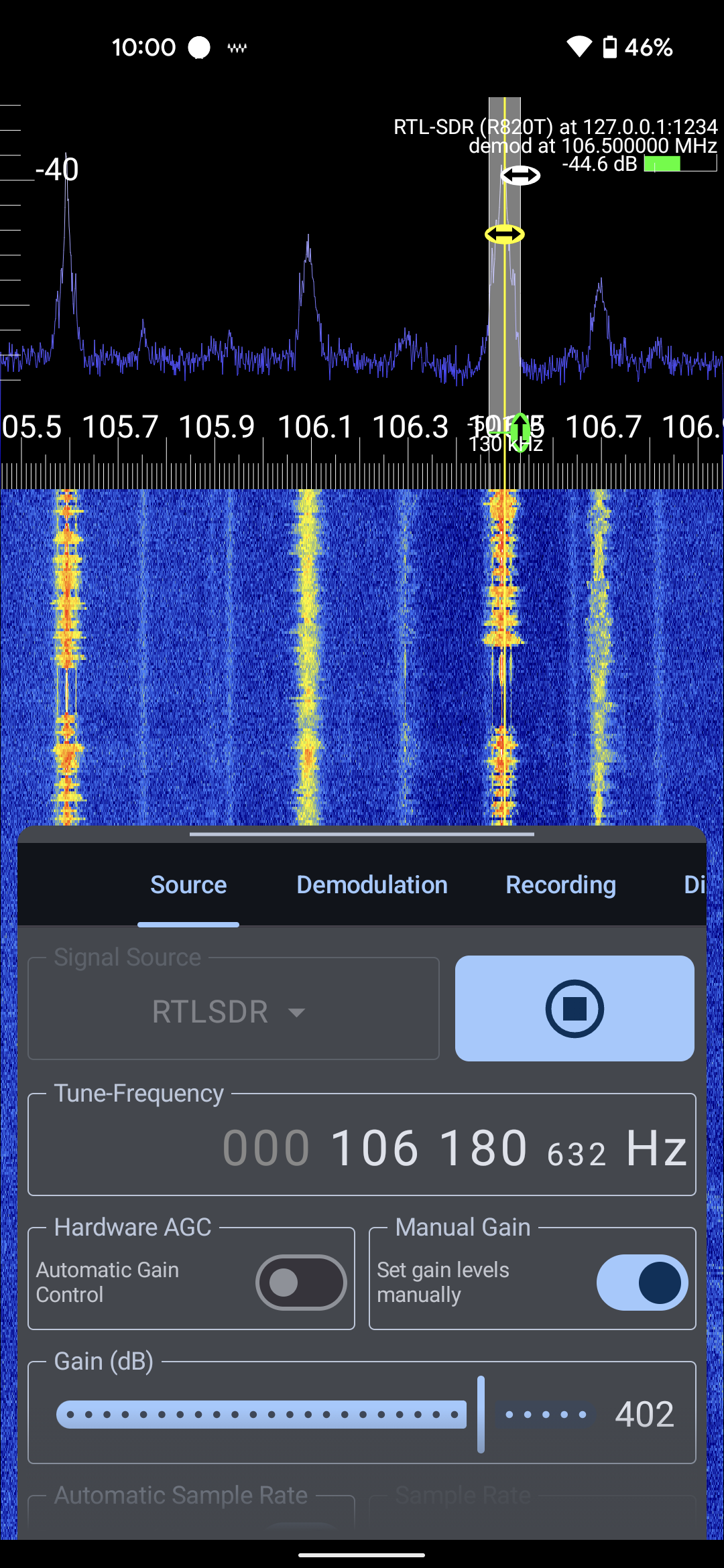

• Adjustable SDR settings (frequency, gain, sample rate, etc.)
• Adjustable FFT settings (FFT size, averaging, peak hold, frame rate, etc.)
• Raw IQ recording and playback
• Bookmarks for Stations and Bands
  • Import from SDR# or SDR++
  • Automatically synchronize with online lists (EiBi DB, POTA & SOTA Spots)

New in RF Analyzer 2.0

• Complete rework of the app in a modern language (Kotlin) and with a modern Material Design based UI
• Demodulation can run as background service without a foreground app
• Significant performance improvements
• Built-in context-aware help and a full offline in-app manual
• Compatible with the RTL-SDR Blog v4

Refer to the Quick Start section for your first steps.

For information on how to install the app and connect your SDR device look into the Installation & Setup section.
